NSN 2330-00-277-9337 NIIN 002779337 — Cargo Trailer

Home » FSG Index » FSG 23 - And Cycles Trailers Motor Vehicles Ground Effect Vehicles » FSC 2330 - Trailers » NSN 2330-00-277-9337

NSN

Item Name

Assigned

DEMIL

Shelf Life

UOM

Using Services

NSN:

		2330-00-277-9337
2330002779337

Description:

TRAILER,CARGO

NSN Assigned:

01-JAN-63

DEMIL:

DEMIL

Shelf Life:

N/A

UOM:

1 EA

Using Services:

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Quality Commitment

Serving our customers with quality and safety first.

AS9120 Certified
Audited supply chain
ITAR Registered
DDTC Registered
HAZMAT Certified
Customer service objectives
Every product 100% inspected

2330-00-277-9337 Specification Set by the OEM (see RNCC code 3)

Body Material AAFZ:

steel

Overall Length ABHP:

182.000in. ⁓182-1/64"

Overall Width ABMK:

96.000in.

Inside Width ADJT:

74.000in.

Inside Length ADJU:

110.000in.

Inside Height AFMQ:

18.000in.

Body Type AJGE:

box w/lattice side extensions

Floor Level Design ALYP:

flat

Design Type APGF:

wheeled

Capacity Rating ATYX:

1.500 tons

Bed Type AWHA:

fixed

Support Type AYFN:

wheel

Wheel Arrangement Style AZBT:

middle, dual

Parking Brakes BPGN:

included

Suspension Type BPQW:

through shaft axle

Tarpaulin BRRZ:

included

Top Bows BRSB:

included

Tailgate BRSD:

included

Retractable Support Feature BXJL:

included

Drawbar Type CCRW:

rigid A-Frame

Loading Ramp CGNW:

not included

Distance From Body Front To Drawbar Coupler Center CGNX:

50.000in.

Service Brake Type CGPF:

AIR-Hydraulic

Drawbar Characteristic CGPG:

fixed

Drawbar Coupler Type CGPH:

lunette

Auxiliary Support Type CGPJ:

leg

Towing Pintle Hook CGPK:

not included

Body Front Shape CGPN:

straight

Platform Loading Height Adjustability CGPP:

nonadjustable

Nondefinitive Spec/std Data ZZZT:

M-105 type

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number

Cage

RNCC

RNVC

DAC

RNAAC

Status

MSDS

SADC

Part Number:

MILT10240TYPEM10

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MILT10240TYPEM10

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MILT10240TYPEM10

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

MILT10240TYPEM10

Cage Code:

81349

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC

FIIG

Concept No.

App. Key

Cond. Code

Status

INC:

12980

FIIG:

T277-C

Concept No.:

App. Key:

Cond. Code:

Status:

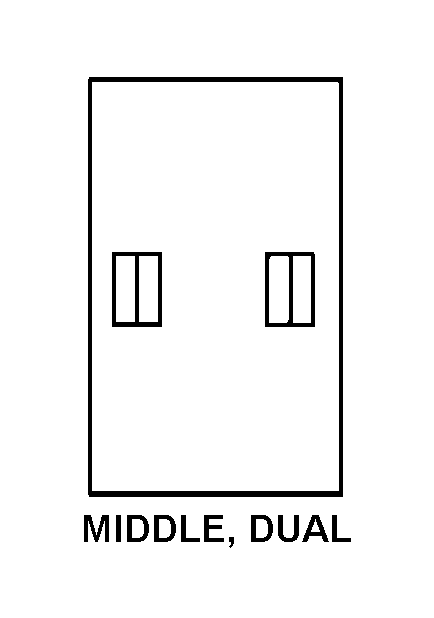

WHEEL ARRANGEMENT STYLE MIDDLE, DUAL style nsn 2330-00-277-9337

Definition Definition of approved item name (AIN): "TRAILER,CARGO"

A trailer with either a box type body, a lattice type body with a closed or partially closed top, or a body having integral sides and front panel, usually with a flat loading platform. May include removable top bows and tarpaulin.

Packaging & Dimensions Packaging instructions, special markings, and approx. weight/dims

Pack Size

Pack Weight

Item Weight

Item Dim.

Pack Size:

182.0 X 98.0 X 96.0

Paclk Weight:

9,999.9000lbs

Item Weight:

Item Dim:

Container

OPI

SPI No.

SPI Rev.

SPC Mkg.

LVL A

LVL B

LVL C

Container:

OPI:

SPI No.:

SPI Rev.:

SPC Mkg:

LVL_A:

LVL_B:

LVL_C:

Packaging Codes

OPI: Optional Procedure Indicator Code. A one position alpha code that indicates the allowable deviations from the prescribed requirements.

SPI No.: Special packaging instructions number.

LVL A/B/C: Indicates the type of shipping container required for level A, B, or C maximum packing protection.

SPC Mkg: A two position code that identifies the special markings applied to the container, which is part of the total pack to protect the contained item during preservation, packing, storage, transit and removal from the pack.

2330-00-277-9337 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC

PMIC

ESD

ENAC

ADPE

CRITL

HMIC:

PMIC:

ESD:

ADPE:

CRITL:

Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) U

Precious metal content is unknown

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.

Material Management Material categorization and source of supply

SOS

SMIC

MMAC

MCC

SOS:

AKZ

SOS:

MMAC:

MCC:

Source of Supply (SOS) AKZ

Us army tank-automotive and armaments command warren, mi 48397-5000

Material Codes

SOS: Source of Supply. A three position code or routing identifier code (ric), which identifies the source of supply activity.

SMIC: Special Material Indicator Code. A two position code, which categorizes material on the basis of requirements for source or quality control, technical design or configuration control, procurement, stocking and issue control, special receipt, inspection, testing, storage, or handling.

MMAC: Material Management Aggregation Code. A two position code that identifies an item of supply to be managed by a specific activity manager.

MCC: Material Echelon Code. A two position code employed by the marine corps in classifying items into categories by materiel category and procurement echelon. the alphanumeric management code is in the first position and identifies the materiel category

IMC: Denotes wether items shall be subjected to integrated management under the defense supply agency or retained by the individual military service or other department of defense components for their management. Assigned by th activity responsible for item management coding.
