NSN 2040-01-320-4124 NIIN 013204124 — Rudder Shaft

Home » FSG Index » FSG 20 - Ship And Marine Equipment » FSC 2040 - Marine Hardware And Hull Items » NSN 2040-01-320-4124

NSN

Item Name

Assigned

DEMIL

Shelf Life

UOM

Using Services

NSN:

		2040-01-320-4124
2040013204124

Description:

SHAFT,RUDDER

NSN Assigned:

24-MAY-90

DEMIL:

DEMIL

Shelf Life:

N/A

UOM:

1 EA

Using Services:

Coast Guard

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Quality Commitment

Serving our customers with quality and safety first.

AS9120 Certified
Audited supply chain
ITAR Registered
DDTC Registered
HAZMAT Certified
Customer service objectives
Every product 100% inspected

2040-01-320-4124 Specification Set by the OEM (see RNCC code 3)

First End Style AAGZ:

dual keyway

End Similarity AAHN:

not identical

Second End Style AAHP:

external threaded

Overall Length ABHP:

143.970in. ⁓143-63/64"

End Item Identification AGAV:

used in ships steering system onboard 270 ft wmec coast guard vessels

First End External Keyway Length AMDE:

18.000in.

First End Keyway Depth AMDG:

0.824in.

First End Diameter AMDL:

8.2500in.

First End Angle Between Keyways AMFE:

180.0 degrees

Second End Diameter AMFZ:

5.5000in.

Second End External Thread Length AMHA:

5.750in.

Step Quantity ATPC:

Largest Step Diameter CSPY:

14.500in.

Err Default CSRG:

err default

Err Default CSSW:

err default

Surface Finish CSYM:

125.0 microns

Special Features FEAT:

second end tapered length 41.750 ins. with keyway 1.750 in. wide x 0.875 in. deep, thread size 5.500-4 acme threads per inch

Material MATT:

steel

Material Document And Classification MDCL:

MIL-S-23284 mil spec single material response

Unpackaged Unit Weight PKWT:

4175.00 pounds

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number

Cage

RNCC

RNVC

DAC

RNAAC

Status

MSDS

SADC

Part Number:

905WMEC562-002 PIECE 1

Cage Code:

81340

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Part Number:

905WMEC562-002 PIECE 1

Cage Code:

82538

RNCC:

RNVC:

DAC:

RNAAC:

Status:

MSDS:

SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC

FIIG

Concept No.

App. Key

Cond. Code

Status

INC:

36922

FIIG:

A23200

Concept No.:

App. Key:

Cond. Code:

Status:

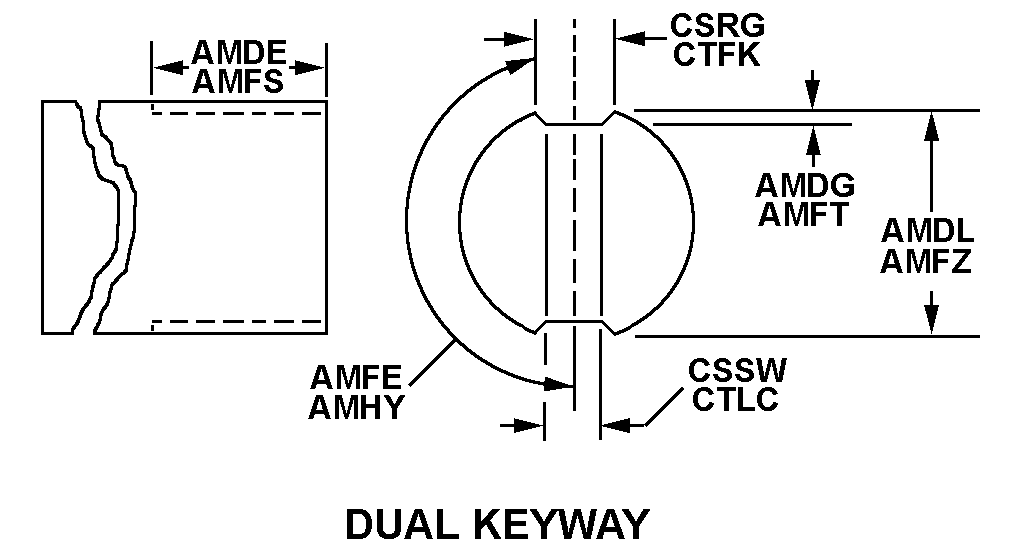

FIRST END STYLE DUAL KEYWAY style nsn 2040-01-320-4124

Definition Definition of approved item name (AIN): "SHAFT,RUDDER"

A shaft with either keyed, threaded and/or tapered first end with a foot, or tapered keyed shaft second end to accept a rudder.

2040-01-320-4124 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC

PMIC

ESD

ENAC

ADPE

CRITL

HMIC:

PMIC:

ESD:

ADPE:

CRITL:

Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
