NSN 1015-00-722-9135 NIIN 007229135 — Trigger

NSN
Item Name
Assigned
DEMIL
Shelf Life
UOM
Using Services
NSN:
1015-00-722-9135
1015007229135
Description:
TRIGGER
NSN Assigned:
01-JAN-63
DEMIL:
 DEMIL
Shelf Life:
N/A
UOM:
--
Using Services:
--

Price Quote Get an up to date pricing and availability quote for this product. Order online or over the phone.

Part Number:
Quantity Requested:
Your Email:
Full Name:
Contact Phone:
Company:

Quality Commitment

Serving our customers with quality and safety first.

  •   AS9120 Certified
  •   Audited supply chain
  •   ITAR Registered
  •   DDTC Registered
  •   HAZMAT Certified
  •   Customer service objectives
  •   Every product 100% inspected
AS9120 Certified by SAI Global

1015-00-722-9135 Specification Set by the OEM (see RNCC code 3)

Overall Length ABHP:

4.680in. ⁓4-11/16"

End Item Identification AGAV:

1015-691-1289 M20

Weapon Size Designation ANLA:

75 millimeter

Weapon Model Number ANLB:

M20

Style Designator STYL:

trigger grooved

Fsc Application Data ZZZV:

rifle, recoilless, 75 mm

Cross Reference Parts Part numbers that meet the specification outlined on this page and set by the OEM

Part Number
Cage
RNCC
RNVC
DAC
RNAAC
Status
MSDS
SADC
Part Number:
7229135
Cage Code:
19206
RNCC:
3
RNVC:
2
DAC:
1
RNAAC:
BF
Status:
A
MSDS:
SADC:
Part Number:
1015-722-9135
Cage Code:
A00AM
RNCC:
6
RNVC:
9
DAC:
9
RNAAC:
YP
Status:
A
MSDS:
SADC:

Identification Item Identification Guide (IIG) and Item Name Code (INC)

INC
FIIG
Concept No.
App. Key
Cond. Code
Status
INC:
22223
FIIG:
T102-F
Concept No.:
App. Key:
FB
Cond. Code:
2
Status:
A

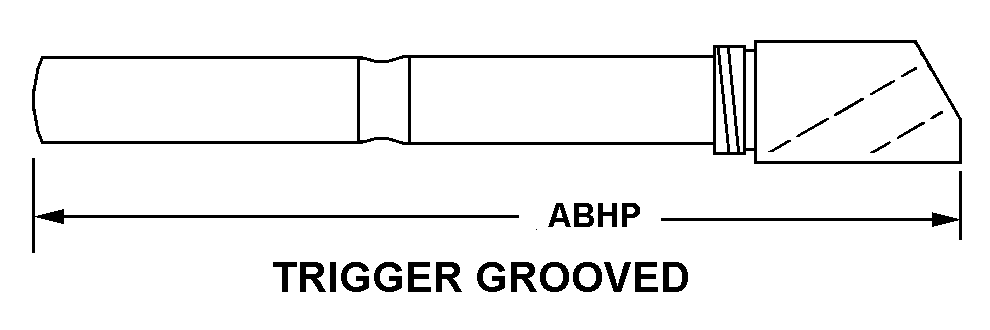

STYLE DESIGNATOR TRIGGER GROOVED style nsn 1015-00-722-9135

Definition Definition of approved item name (AIN): "TRIGGER"

An item/device, part of the firing mechanism, that actuates a firing pin or initiates an explosive train.

1015-00-722-9135 Material Hazmat, Precious Metals, Criticality, Enviroment, and ESD

HMIC
PMIC
ESD
ENAC
ADPE
CRITL
HMIC:
N
PMIC:
A
ESD:
ESD:
ADPE:
0
CRITL:
X
Hazmat (HMIC) N

Indicates there is no data in the hmirs and the nsn is in a fsc not generally suspected of containing hazardous materials.

Precious Metals (PMIC) A

Item does not contain precious metal.

ADPE 0

Represents items with no adp components

Criticality X

The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

  Identification Codes

HMIC: Hazardous Material Indicator Code. A one position code that identifies a hazardous item.

PMIC: Precious Metal Indicator Code. A one position code which identifies items that have precious metals as part of their content. precious metals are those metals generally considered to be uncommon, highly valuable, and relatively superior in certain properties such as resistance to corrosion and electrical conductivity.

ESD: Electrostatic Discharge. Indicates if an item is susceptible to electrostatic discharge or electromagnetic interference damage. electrostatic discharge damage occurs when an accumulation of static electricity generated by the relative motion or separation of materials is released to another item by direct contact. electromagnetic interference damage occurs when an item comes into proximity with an electrostatic or magnetic field.

ENAC: Enviromental Attribute Code. Identifies items with environmentally preferred characteristics.

CRITL: Criticality Indicator Code. Indicates an item is technically critical by tolerance, fit, application, nuclear hardness properties, or other characteristics.
